T O O L S

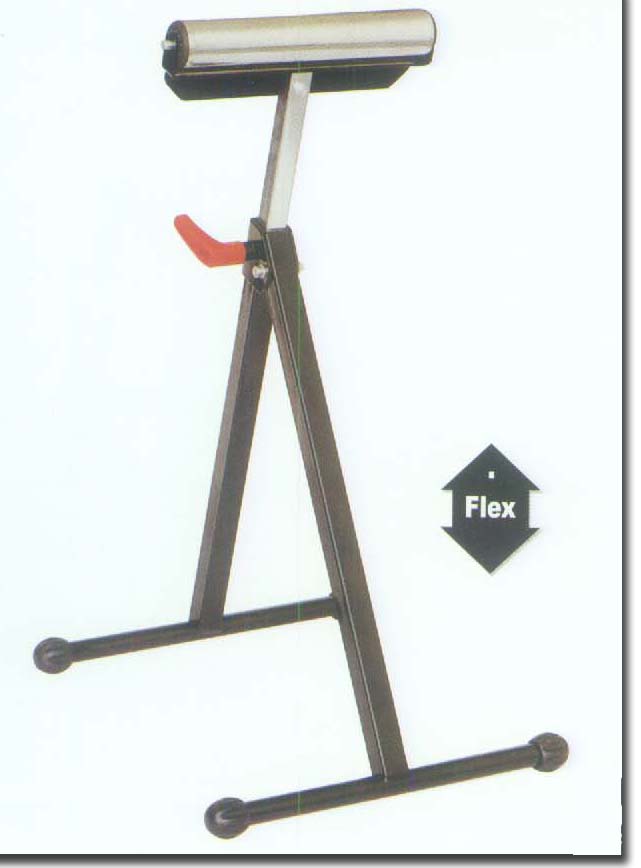

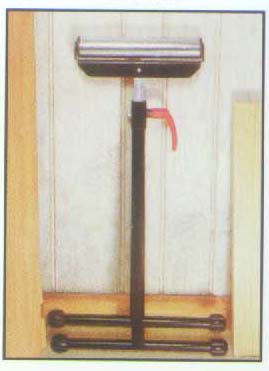

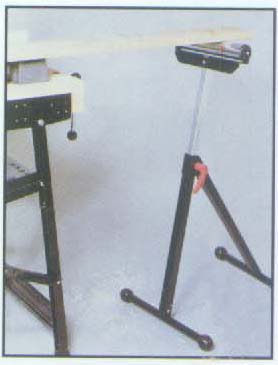

ROLLER STAND
OPEN SIZE(mm)

FOLDING SIZE (mm)

MEAS (mm/1pc)

 GW./N.W(kg) QUANTITY

440x480x770~1080

  440x65x790 800x450x70 6  /  5 2400PCS/40'CTNR

440x480x770~1080

  440x65x790 620x100x100 5  /  4 3600PCS/20'CTNR

PANEL HANDLER

MEAS (mm/1pc)

 GW./N.W(kg) QUANTITY
730x300x530 13/11 3120PCS/10'CTNR(520CTN x 6PC)





4PCS FURNITURE DOLLY SET

MEAS (cm)

 GW./N.W(kg)
50X44X23 22






5PCS FURNITURE DOLLY SET

MEAS (cm)

 GW./N.W(kg)
42.5x42.5x36 25


WORKBENCH CLAMP

MEAS (cm)

 GW./N.W(kg)
80x36x50 17

Shifting Skates
Art. No Cap L x W x H mm Wheel  pcs N. G kg
CSB-6k 6T 210x100x65 12 (steel ) 5
CSB-10k 10T 250x114x78 12 (steel ) 8
CSB-20k 20T 300x130x93 14 (steel ) 16
CSB-40k 40T 420x165x118 14 (steel ) 40
2500R-02 2.5T 210x115x115 2 (nylon ) 4.2
3000-12 3T 330x300x115 12 (nylon) 10
6000-06 6T 260x230x115 6 (nylon) 13
3000R-04W 3T 200x160x115

4 (nylon )

 13
6000R-08W 6T 400x250x115 8 (nylon ) 53
12000R-08SW 12T 400x250x115 8 (nylon) 75
RB-3-5 3T Tube 1.6m height 2 (nylon) 7

haracters

-Easy to couple the modules.

-The possibility of coupling will imply that the

modules can be reused for smaller or bigger

projects as required.

-By transport over uneven surfaces,  the

unevenness will be equalized due to the coupling

กก

Shifting Skates
      A Complete

18T set consisting of 1xCSB-6K steer able and 2XCSB-6K a adjustable
B Complete 22T set 1xCSB-10k 2xCSB-6k
C Complete 30T set 1xCSB-10k 2xCSB-10k
D Complete 40T set 1xCSB-20k 2xCSB-10k
E Complete 60T set 1xCSB-20k 2xCSB-20k
F Complete 80T set 1xCSB-40k 2xCSB-20k
G Complete 120T set 1xCSB-40k 2xCSB-40k
 H Complete 8T set 1x3000R-04W 2x2500R-02
I Complete 9T set 1x3000R-04W 2x3000-12
J Complete 11T set

1x6000R-08W

 2x2500R-02
K Complete 12T set 1x6000R-08W 2x3000-12
L Complete 16T set 1x6000R-08W 4x2500R-02
M Complete 24T set 1x12000R-08SW 2x6000-6
N Complete 27T set 1x12000R-08SW

6x2500R-02




กก

Shifting Skates
Model SJ1.5 SJ3 SJ5 SJ10 SJL SJL10
Rated capacity 1500 3000 5000 10000 5000 10000
Test load 22 44.1 43.5 147 73.5 147
Had shake to lit full load 300 350 400 580 400 580

Dimensions

 A 81 83 108 124 108 124
B 100 130 140 140 180 180
C 800~900 725~1090 730~1075 800~1190 730~1075 800~1190
D 70~370 70~425 80~425 100~490 40~385 40~430
E 55 60 71 86 71 86
F 46 45 68 76 68 78
G 110 138 170 170 170 170
H 225 249 249 300 249 300
K 147 170 190 252 190 252
R 119 140 155 185 155 185
S 166 235 217 187 257 247
T 113 128 128 250 128 250
Net weight 18 20 28 46 31 61
