  Heavy Storage rack


　

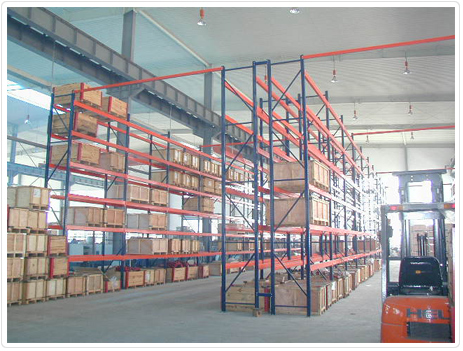

The racks consist of pillars and beams, with a maxi, loding capacity of 4000kg for each tier, and adjustable of up to 2" there are buckles equipped with spring locks for firmness and safety. they are easy to install and dismantle, and widely used in large storage houses supermarkets and factories.


　

Inter Lake Style 3"X1-5/8" (BNIUA)
Item Thickness Size Depth*Height Weight (kg)
BNIUA36096 14Ga 36"X96" 19.38
BNIUA360120 14Ga 36"X120" 22.93
BNIUA360144 14Ga 36"X144" 28.32
BNIUA360168 14Ga 36"X168" 32.50
BNIUA360192 14Ga 36"X192" 34.45
BNIUA360216 14Ga 36"X216" 39.80
BNIUA360240 14Ga 36"X240" 43.42
BNIUA42096 14Ga 42"X96" 20.50
BNIUA420120 14Ga 42"X120" 23.95
BNIUA420144 14Ga 42"X144" 29.73
BNIUA420168 14Ga 42"X168" 34.45
BNIUA420192 14Ga 42"X192" 37.68
BNIUA420216 14Ga 42"X216" 41.80
BNIUA420240 14Ga 42"X240" 47.86
BNIUA440144 14Ga 44"X144" 30.58
BNIUA440192 14Ga 44"X192" 38.25
BNIUA440240 14Ga 44"X240" 48.93
BNIUA48096 14Ga 48"X96" 21.47
BNIUA480120 14Ga 48"X120" 24.96
BNIUA480144 14Ga 48"X144" 31.16
BNIUA480168 14Ga 48"X168" 36.42
BNIUA480192 14Ga 48"X192" 39.36
BNIUA480216 14Ga 48"X216" 42.95
BNIUA480240 14Ga 48"X240" 49.36

Inter Lake Style 3"X3" (BNIUB)

Item Thickness Size Depth*Height Weight (kg)
BNIUB36096 14Ga 36"X96" 27.05
BNIUB360120 14Ga 36"X120" 33.07
BNIUB360144 14Ga 36"X144" 37.85
BNIUB360168 14Ga 36"X168" 44.20
BNIUB360192 14Ga 36"X192" 48.95
BNIUB360216 14Ga 36"X216" 54.61
BNIUB360240 14Ga 36"X240"

61.45
BNIUB42096 14Ga 42"X96" 28.43
BNIUB420120 14Ga 42"X120" 34.52
BNIUB420144 14Ga 42"X144" 39.20
BNIUB420168 14Ga 42"X168" 46.77
BNIUB420192 14Ga 42"X192" 50.30
BNIUB420216 14Ga 42"X216"

56.11
BNIUB420240 14Ga 42"X240"

63.44
BNIUB48096 14Ga 48"X96" 29.93
BNIUB480120 14Ga 48"X120" 36.02
BNIUB480144 14Ga 48"X144" 42.03
BNIUB480168 14Ga 48"X168" 47.25
BNIUB480192 14Ga 48"X192" 52.05
BNIUB480216 14Ga 48"X216"

57.66
BNIUB480240 14Ga 48"X240"

65.46

Beams (BNIB)
Item Thickness Length Weight (kg)
BNIB3072 16Ga/14GA 3"X72" 7.21/8.85
BNIB3084 16Ga/14GA 3"X84"

8.22/10.12
BNIB3096 16Ga/14GA 3"X96"

9.20/11.36
BNIB30108 16Ga/14GA 3"X108"

10.25/12.69

BNIB30120 16Ga/14GA 3"X120"

11.3/14.02
BNIB3.5072 16Ga/14GA 3.5"X72"

7.69/9.45
BNIB3.5090 16Ga/14GA

3.5"X90"

9.38/11.60
BNIB3.5096 16Ga/14GA 3.5"X96"

9.93/12.28
BNIB3.50108 16Ga/14GA 3.5"108"

11.05/13.70
BNIB3.50120 16Ga/14GA 3.5"X120"

12.18/15.13
BNIB4096 16Ga/14GA 4"X96"

10.66/12.80
BNIB40108 16Ga/14GA 4"X108"

11.86/14.20
BNIB40120 16Ga/14GA 4"X120"

13.20/15.60
BNIB4.50108 16Ga/14GA 4.5"X108"

12.75/15.86
BNIB4.50120 16Ga/14GA 4.5"X120"

14.02/17.46
BNIB4.50144 16Ga/14GA 4.5"X144"

16.56/20.68
BNIB5096 16Ga/14GA 5"X96"

12.15/14.70

BNIB50108 16Ga/14GA 5"X108"

13.45/16.35

BNIB50120 16Ga/14GA 5"X120"

14.85/18.00
BNIB50132 16Ga/14GA 5"X132"

16.25/19.65
BNIB50144 16Ga/14GA 5"X144"

17.65/21.35
BNIB5.5096 16Ga/14GA 5.5"X96"

12.60/15.60
BNIB5.50108 16Ga/14GA 5.5"X108"

13.90/17.30
BNIB5.50120 16Ga/14GA 5.5"X120"

15.35/19.11
BNIB5.50132 16Ga/14GA 5.5"X132"

16.80/20.93
BNIB5.50144 16Ga/14GA 5.5"X144"

18.2/22.75
BNIB5.50156 16Ga/14GA 5.5"X156"

19.66/24.6
BNIB6096 16Ga/14GA 6"X96"

13.30/16.50

BNIB60108 14Ga/11GA 6"X108"

18.42/30.06

BNIB60120 14Ga/11GA 6"X120" 20.35/32.88
BNIB60132 14Ga/11GA 6"X132" 22.28/35.70
BNIB60144 14Ga/11GA 6"X144" 24.20/38.52
BNIB60156 14Ga/11GA 6"X156" 26.14/40.63
BNIB60168 14Ga/11GA 6"X168" 28.06/43.66

Beams (BNIB)
Item Thickness Size Width*Length Weight (kg)
BNIW36046 ф5.6 36"X46"

10.57

BNIW36052 ф5.6 36"X52" 12.59
BNIW42046 ф5.6 42"X46" 12.35
BNIW42052 ф5.6 42"X52" 14.73
BNIW48046 ф5.6 48"X46" 13.91
BNIW48052 ф5.6 48"X52" 16.63

Safely Support (BNISS)
Item Thickness Length Weight (kg)
BNISS36

14Ga

 36" 2.4
BNISS42 14Ga 42" 2.8
BNISS48 14Ga 48" 3.2

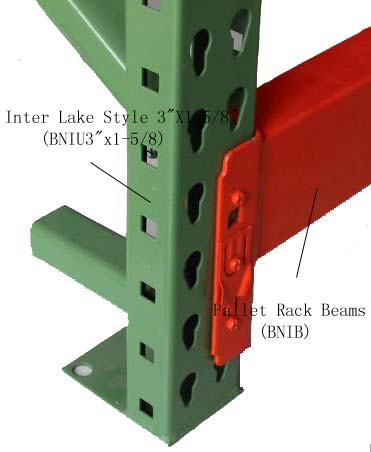

Inter Lake Style 3"X1-5/8" (BNIUA)

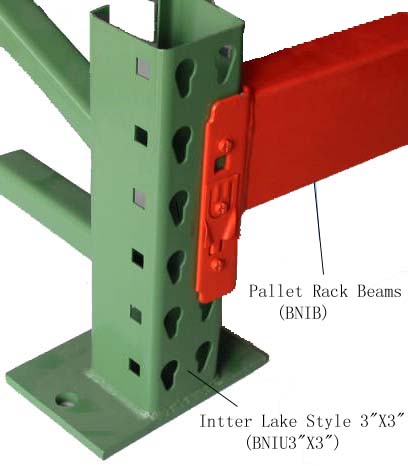

Inter Lake Style 3"X3"   (BNIUB)

Bolted Upright Frame

　

End Clip, Interchangeable for both New and Old Inter Lake Style

End Clip with Removable Safety Pins

Beams (BNIB)

Wire Decks (BNIW)

Safely Support (BNISS)
