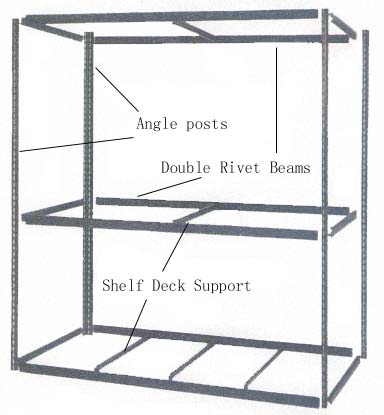

Light Rack |
|
| |
|
The racks, being joined together with rivets, are easy to
install or dismantle, without use of any special tools They can be fixed at random length,
width or height. The have a maxi, height of up to 1.5"and a maxi.
loading capacity of 150kgs for each tier. They are widely used in
storage houses. garment factories and hardware shops. Add-on units
assemble quickly without special tools by using a common tee post
between units. Finished in light putty baked
enamel.
|
|
|
|
|
|
Angle posts |
| Item |
Thickness |
Length |
Weight
(kg) |
| BNP2.5 |
14Ga |
2.5' |
0.678 |
| BNP3 |
14Ga |
3' |
0.812 |
| BNP4 |
14Ga |
4' |
1.084 |
| BNP5 |
14Ga |
5' |
1.363 |
| BNP6 |
14Ga |
6' |
1.624 |
| BNP7 |
14Ga |
7' |
1.895 |
| BNP8 |
14Ga |
8' |
2.169 |
| BNP9 |
14Ga |
9' |
2.426 |
| BNP10 |
14Ga |
10' |
2.768 |
| BNP12 |
14Ga |
12' |
3.253 |
| BNP13 |
14Ga |
13' |
3.524 |
|
Heavy Angle Post |
| Item |
Thickness |
Length |
Weight (kg) |
| BNHP7 |
14Ga |
7' |
2.595 |
| BNHP8 |
14Ga |
8' |
2.966 |
| BNHP10 |
14Ga |
10' |
3.707 |
| BNHP12 |
14Ga |
12 |
4.449 |
| BNHP14 |
14Ga |
14' |
5.190 |
| BNHP18 |
14Ga |
18' |
6.779 |
|
Flower Post |
| Item |
Thickness |
Length |
Weight (kg) |
| BNFP6 |
14Ga |
6' |
2.161 |
| BNFP6.5 |
14Ga |
6.5' |
2.341 |
| BNFP7 |
14Ga |
7' |
2.521 |
| BNFP8 |
14Ga |
8' |
2.881 |
| BNFP10 |
14Ga |
10' |
3.602 |
| BNFP12 |
14Ga |
12' |
4.322 |
|
Tee Post |
| Item |
Thickness |
Length |
Weight (kg) |
| BNTP3 |
14Ga |
3' |
1.872 |
| BNTP4 |
14Ga |
4' |
2.496 |
| BNTP5 |
14Ga |
5' |
3.120 |
| BNTP6 |
14Ga |
6' |
3.744 |
| BNTP7 |
14Ga |
7' |
4.368 |
| BNTP8 |
14Ga |
8' |
4.992 |
| BNTP9 |
14Ga |
9' |
5.616 |
| BNTP10 |
14Ga |
10' |
6.240 |
| BNTP12 |
14Ga |
12' |
7.488 |
|
Single Rive Beams
|
| Item |
Thickness |
Length |
Weight
(kg) |
| BNSR12 |
14Ga |
12" |
0.207 |
| BNSR15 |
14Ga |
15" |
0.264 |
| BNSR18 |
14Ga |
18" |
0.312 |
| BNSR24 |
14Ga |
24" |
0.418 |
| BNSR36 |
14Ga |
36" |
0.523 |
| BNSR42 |
14Ga |
42" |
0.738 |
| BNSR48 |
14Ga |
48" |
0.833 |
|
Double Rivet Beam
|
| Item |
Thickness |
Length |
Weight (kg) |
| BNDR12 |
16Ga |
12" |
0.304 |
| BNDR15 |
16Ga |
15" |
0.381 |
| BNDR18 |
16Ga |
18" |
0.547 |
| BNDR24 |
16Ga |
24" |
0.610 |
| BNDR30 |
16Ga |
30" |
0.965 |
| BNDR36 |
14Ga |
36" |
1.158 |
| BNDR42 |
14Ga |
42" |
1.351 |
| BNDR48 |
14Ga |
48" |
1.538 |
| BNDR60 |
14Ga |
60" |
1.948 |
| BNDR69 |
14Ga |
69" |
2.217 |
| BNDR72 |
14Ga |
72" |
2.313 |
| BNDR96 |
14Ga |
96" |
3.087 |
|
Double
Rivet Channel Beam
|
| Item |
Thickness |
Length |
Weight (kg) |
| BNDC48 |
14Ga |
48" |
1.846 |
| BNDC72 |
14Ga |
72" |
2.763 |
| BNDC96 |
14Ga |
96" |
3.692 |
| BNDCH72 |
11Ga |
72" |
4.363 |
| BNDCH96 |
11Ga |
96" |
5.829 |
|
Shelf deck support
|
| Item |
Thickness |
Length |
Weight (kg) |
| BNSDS12 |
16Ga |
12" |
0.313 |
| BNSDS15 |
16Ga |
15" |
0.356 |
| BNSDS18 |
16Ga |
18" |
0.425 |
| BNSDS24 |
16Ga |
24" |
0.563 |
| BNSDS30 |
16Ga |
30" |
0.701 |
| BNSDS36 |
16Ga |
36" |
0.839 |
| BNSDS48 |
16Ga |
48" |
1.116 |
|
Angle posts
Heavy Angle Post
Flower Post
Tee Post
Single Rive Beams
Double Rivet Beam
Double Rivet
Channel Beam

Shelf deck support |
|
|
|
|
|
|
