A E
|
|
|
|
|
|
- Ideal
for long distances and horizontal distribution:
pedestrian controlled or with driver platform.
- Safety
reversing device reduces the chance of operator
injury. Low profile design provides excellent
visibility.
- MOSFET
controller with electric throttle
|
| |
|
|
| ¡¡
|
|
|
 |
| |
|
¡¡
|
|

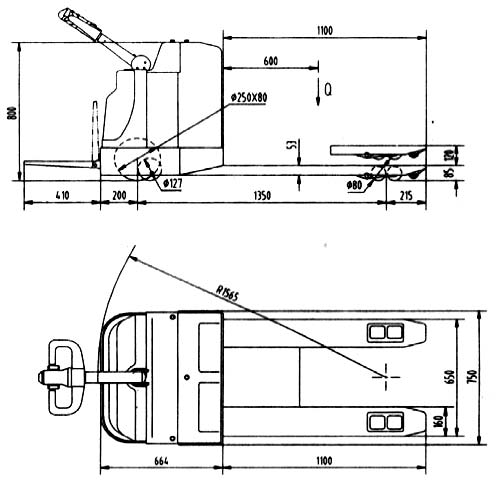

| Model |
CBD20 |
| Capacity |
(kg) |
2000 |
| Center of gravity |
(mm) |
600 |
| Total lift height |
(mm) |
120 |
| Lowered fork
height |
(mm) |
85 |
| Fork length
L |
(mm) |
1100/1150/1220 |
| Width over the
forks |
(mm) |
520/550/650/685 |
| Travel speed with
load |
(km/h) |
4.5 |
| Travel speed
without load |
(km/h) |
¡Ý6.2 |
| Net weight |
(kg) |
450/460 |
| Drive wheel |
(mm) |
Ø250 |
| Fork roller |
(mm) |
Ø80 |
| Battery voltage |
(V) |
24 |
| Turning
radius R |
(mm) |
1565/1615/1685 |
|
|
|
