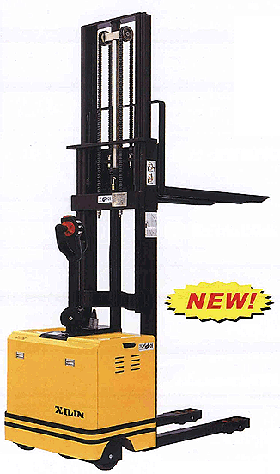

CDN10
|
|
|
|
|
|
 |
|
-
Robust
sectional steel construction
-
Large
safety buttons for increased userprotection
infinitely adjustable forward and reverse speed by
impulse control
.
-
Electro-magnetic
braking by interruption of electric circuit.
Permanent stop when tiller is within 200 of
vertical or horizontal position.
Option: Straddle
foot can be made for model CDN
|
| |
|
|

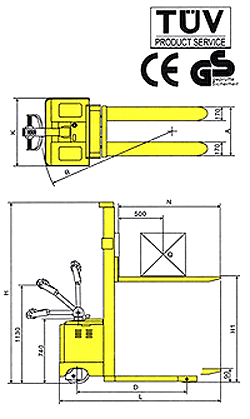

| Model
|
CDN5.0
|
CDN7.5
|
CDN10
|
| Capacity
|
(kg)
|
500
|
750
|
1000 |
| Centre
of gravity
|
(mm)
|
|
500 |
|
| Max
lift height(H1)
|
(mm)
|
1600
|
2500 |
3000 |
| Lift
speed with rated load
|
(m/s)
|
|
0.06
|
|
| Travel
speed with load |
(km/h)
|
|
4.5 |
|
| Travel
speed without load
|
(km/h)
|
|
5.6 |
|
| Gradient
|
(%xm) |
|
6%x12m
|
|
| Turning
radius (R)
|
(mm) |
|
1500 |
|
| Wheel
distance (D)
|
(mm) |
|
1245 |
|
| Fork
length (N)
|
(mm) |
|
1070/1150
|
|
| Overall
size (L)
|
(mm) |
|
1835 |
|
| Overall
size (A)
|
(mm) |
580
|
580 |
695(CDD10x3000)
|
| Overall
size (K)
|
(mm) |
|
780 |
|
| Overall
size (H)
|
(mm) |
2090
|
1840
|
2090 |
| Net
weight
|
(kg) |
|
685 |
|
| Drive
wheel
|
(mm) |
|
ф250x80
|
|
| Fork
wheel
|
(mm) |
|
ф80x70
|
|
| Battery
capacity
|
(AH) |
|
210
|
|
| Battery
voltage
|
(v)
|
|
24 |
|
| Drive
motor power
|
(kw)
|
|
0.75/1.2
|
|
| Lift
motor power
|
(kw)
|
|
2.2
|
|
| Type
of controller
|
|
|
Mosfet
controller
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
